Vacuum Arc Remelting Furnace
The Core Engine of Titanium Melting — Premium Copper & CuCrZr Water-Cooled Crucibles for VAR Furnaces
1. Industry Overview: The "Refining Guardian" of Titanium Alloys

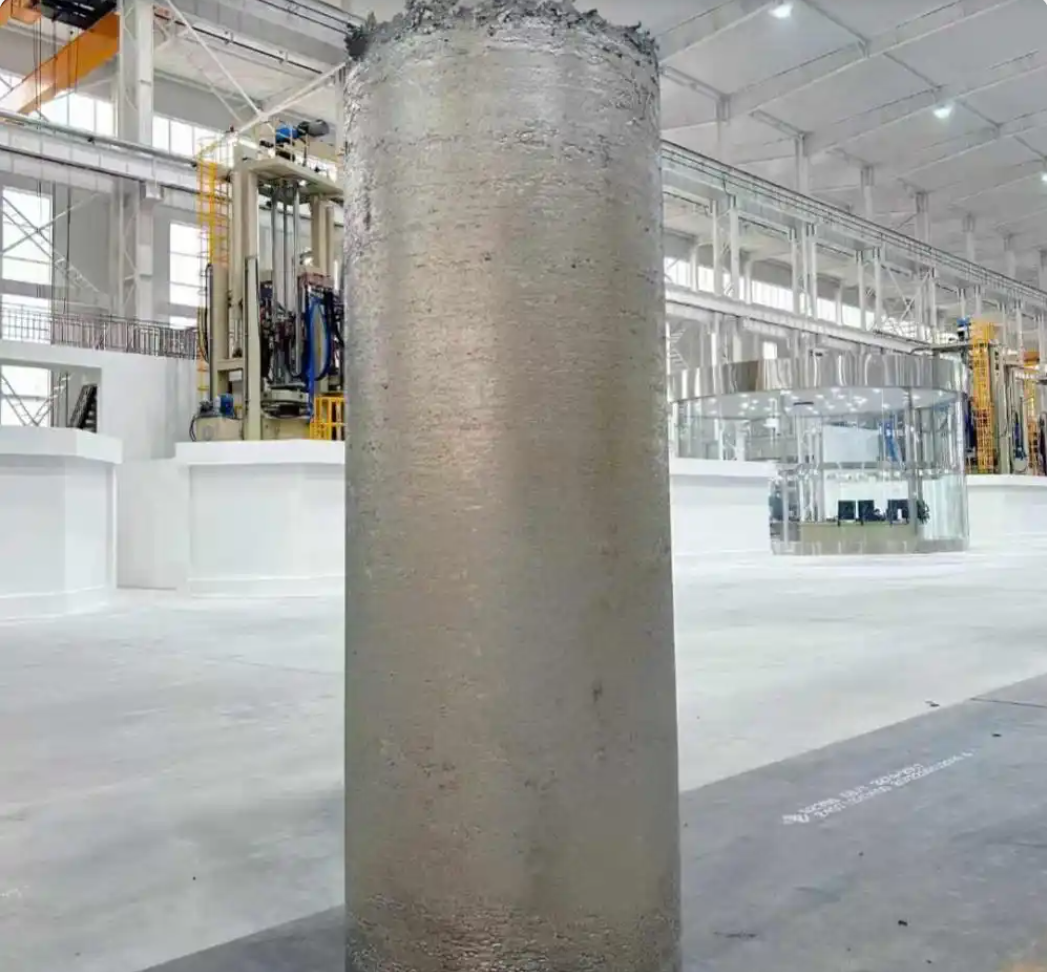

Titanium alloys are renowned as "space metals" due to their high strength-to-weight ratio, exceptional corrosion resistance, and high-temperature performance. In the titanium production chain, the VAR (Vacuum Arc Remelting) Furnace is the indispensable core equipment. It melts consumable electrodes via high-temperature arcs under high-vacuum conditions.
Because titanium is extremely reactive at high temperatures, it cannot be melted in traditional refractory-lined vessels. Instead, it must be processed in water-cooled copper crucibles (molds) without refractory linings. The performance of the crucible directly determines the purity of the titanium ingot, its crystalline structure, and the overall safety of the production process.
2. Industry Application: Precision Condensation Under Extreme Conditions

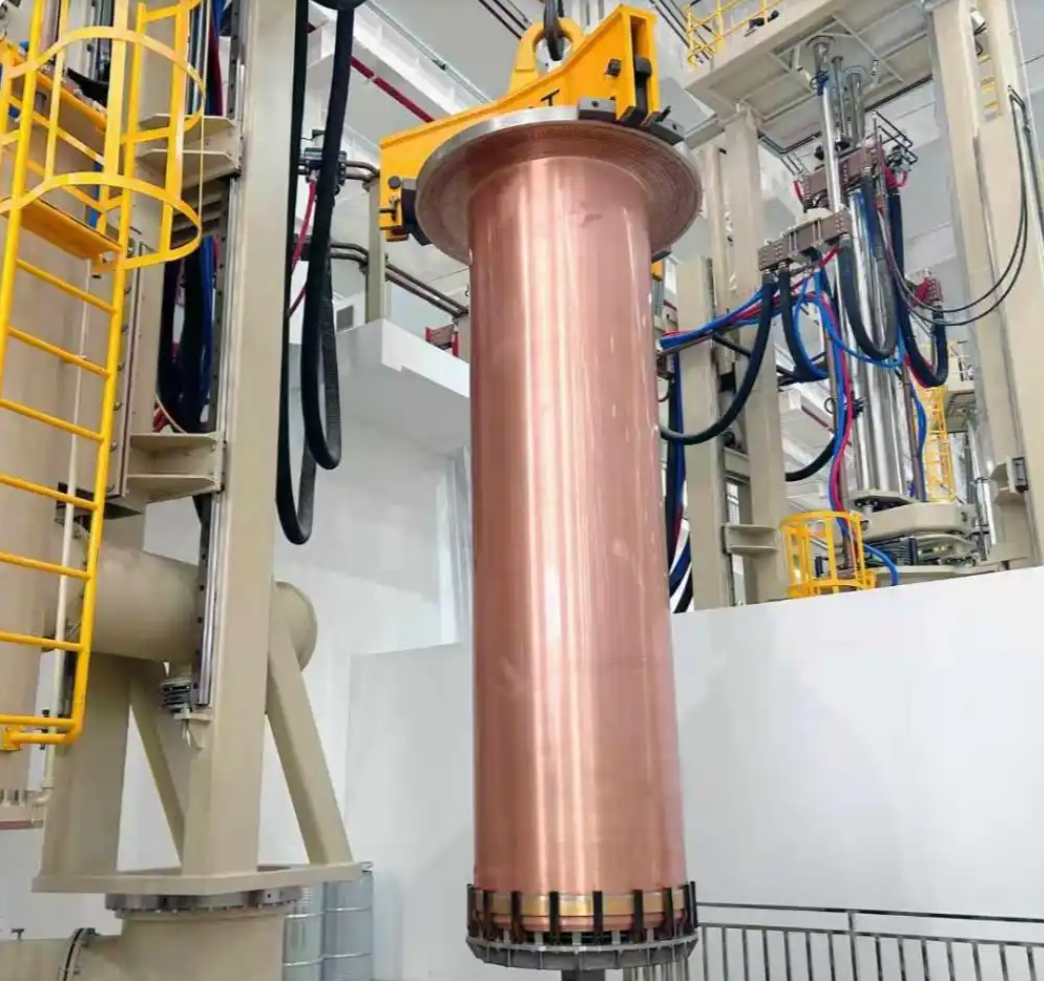

A VAR copper crucible is more than just a container; it is a high-efficiency heat exchange system. Its core functions in titanium smelting include:
Directional Solidification Control: High heat-transfer efficiency guides the titanium melt to solidify uniformly from bottom to top, reducing segregation and eliminating shrinkage cavities to ensure a dense internal structure.
Prevention of Cross-Contamination: The copper walls quickly form a "self-skull" (a thin layer of solidified titanium), allowing the molten metal to be contained within a shell of its own material, completely avoiding impurity contamination.
Thermal Shock Resistance & Safety: The crucible must withstand intense arc radiation and massive pressure differentials between the vacuum interior and water-cooled exterior, ensuring no leakage or deformation at temperatures of several thousand degrees.
3. Application Areas: The "Heart" of the VAR Furnace
Our crucible products are utilized in the most critical thermal zones of the VAR furnace:
Crucible Body: The primary melting space, in direct contact with arc radiation and the molten pool.
Water-Cooled Base: The component that supports the ingot and initiates the arc, requiring extreme mechanical strength and thermal shock resistance.
Flange Sealing Zones: Ensures a high-vacuum tight connection between the crucible and the furnace chamber.
4. Core Materials: From High-Purity Copper to High-Performance Alloys
To meet varying smelting intensities and service life requirements, we offer diverse material solutions:
TP2/T2 High-Purity Copper: Offers excellent thermal conductivity; the standard choice for conventional titanium ingot melting.
CuCrZr (Copper Chromium Zirconium) Alloy: [The Premium Upgrade]
Superior Strength: Maintains high mechanical strength even at elevated temperatures; features excellent creep resistance to prevent the body from becoming out-of-round or bulging.
Excellent Thermal Conductivity: Combines high structural strength with outstanding heat dissipation capabilities.
Extended Service Life: Compared to standard pure copper, CuCrZr crucibles offer a significantly longer lifespan under frequent thermal cycling, drastically reducing downtime and maintenance costs.
5. Technical Advantages
Precision Manufacturing: Produced via rolling, spinning, or heavy-duty forging for a dense grain structure. Internal wall roughness is controlled below $Ra 0.8$ for smooth de-molding.
Vacuum Welding Technology: Critical joints utilize Vacuum Electron Beam Welding (EBW) for high weld strength and superior vacuum integrity.
Rigorous Quality Testing: Every unit undergoes strict hydraulic testing, vacuum leak detection, and ultrasonic flaw detection before leaving the factory.
6. Inquiry & Customized Solutions
We provide customized solutions for VAR furnaces ranging from 1-ton to 15-ton capacities based on your specific melting process.
Service Hotline: [hnww@winworthhi.com]
Technical Support: [hnww@winworthhi.com]
Our Services: We also provide technical support for the repair, polishing, and cooling jacket optimization of used crucibles.
Pro Tip: To speed up the quoting process, please specify: Material preference (T2 or CuCrZr), Crucible ID/Height, Flange specifications, and Cooling jacket type.
